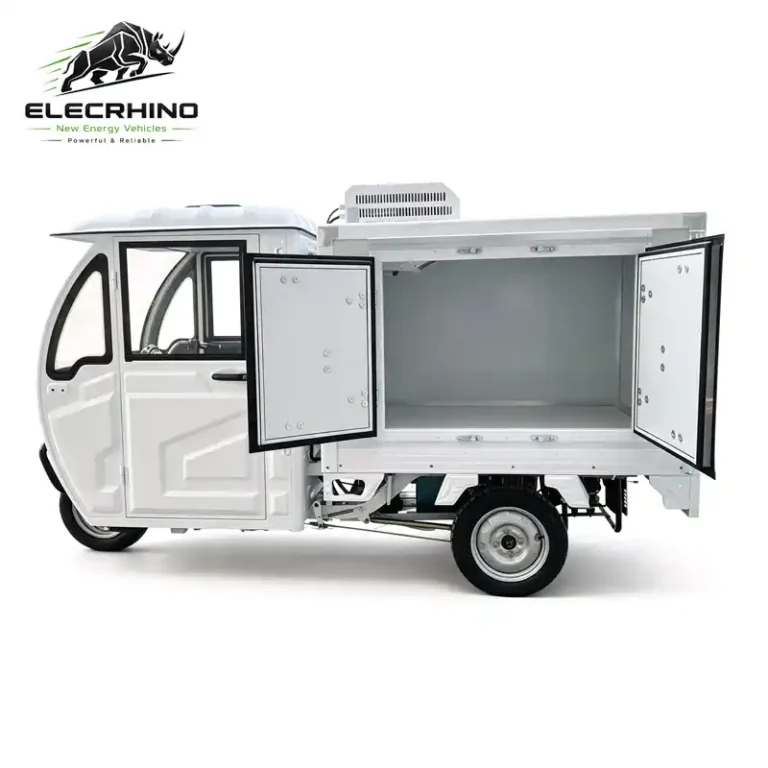

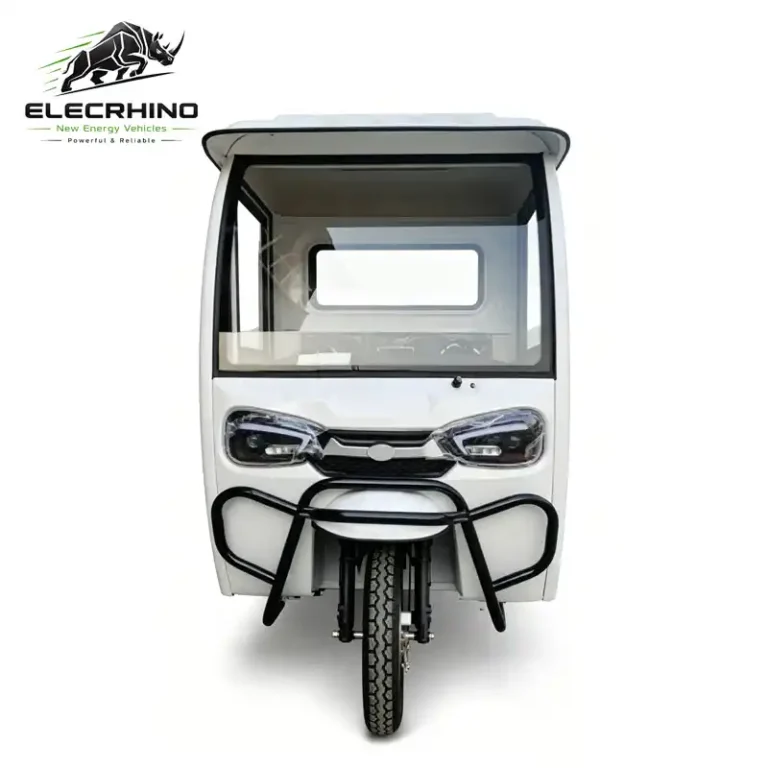

Enclosed Cabin Refrigerated Box Electric Cargo Tricycle ZY6001-1.5m
| Model: | ZY6001-1.5m |
| E-Motor: | 60V 1000W |
| Battery: | lithium-ion |
| Max speed: | 40km/h |
| Overall Size: | 3100×1080×1800mm |
| Loading in 40HQ: | 8 Units |
Best-Selling
Electric cargo Trike
| Item | Specifications |
|---|---|
| Overall Size(mm) | 3100×1080×1800mm |
| wheel hub | Iron |
| Dashboard | Electrical with Dashboard |
| Motor | 60V1000W |
| controller | 18-tube controller |
| Front shock absorber | Shock absorber with hydraulic |
| Rear axle | Integrated 160 rear axle |
| Rear suspension | Rear shock absorption of reinforced steel plate spring |
| Front brake | 130 hub brake |
| Max speed | 40km/h |
| Rear brake | 160 drum brake |
| Tires(F/R) | F 3.75-12/R 4.00-12 |
| Gradeability | 5° |
| Mileage per Charge | According to the matched battery |
| Headlight | LED |
| Battery | lithium-ion |
| Range extender fuel tank | 5L |
| Charging time | 10hours |
| Range Extender Rated Power | 4000W |
| Other option | Incubator 1.5×1.0m, compressor, Box thickness 7.5cm, Refrigeration at -8 to -16 degrees Celsius |
| Loading in 40HQ | 8 Units |
Highlights At a Glance
Details
- 60V1000W self-locking two-speed PM motor adapts mixed urban & suburban cold chain delivery roads.
- Insulated refrigerated cargo box supports -8℃ ~ -16℃ constant temperature fresh goods transport.
- Optional 4000W range extender eliminates range anxiety for all-day cold chain delivery shifts.
- 5cm thick box insulation layer minimizes refrigeration power consumption loss effectively.
- Compressor refrigeration unit guarantees stable low temperature under high-temperature outdoor sunshine.
- Half cabin driver shelter protects couriers during long-hour all-weather cold chain delivery.
- Customizable box size matches different fresh food, medicine batch delivery volume demands.

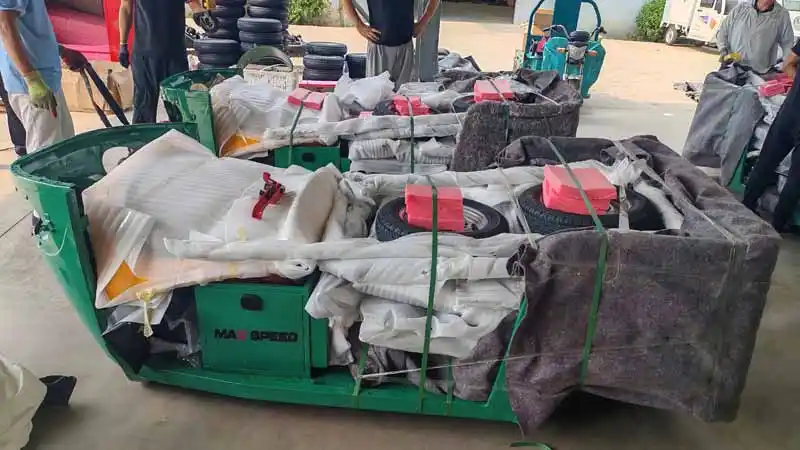

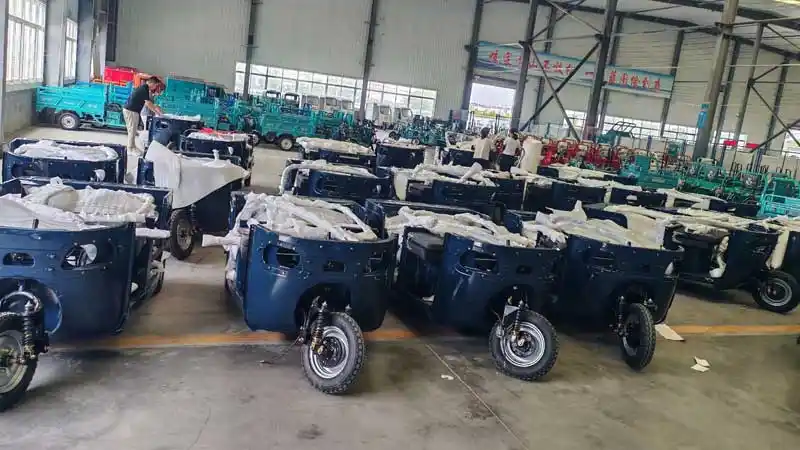

Final Pre-Packing Parts Inspection
Strict manual check of all supporting spare parts after quality testing. Guarantee adequate spare stock for your local sales & after-sales service.
Full Parts Verification Completed
Double confirmation that every accessory is complete. Eliminate missing-parts troubles for bulk orders.
SKD/CKD Packing & Container Loading
We support SKD (Semi Knock-Down)/CKD (Complete Knock-Down) packaging. All electric tricycle components are separately packed to maximize container space utilization. Optimized container loading reduces your sea freight cost for bulk orders.

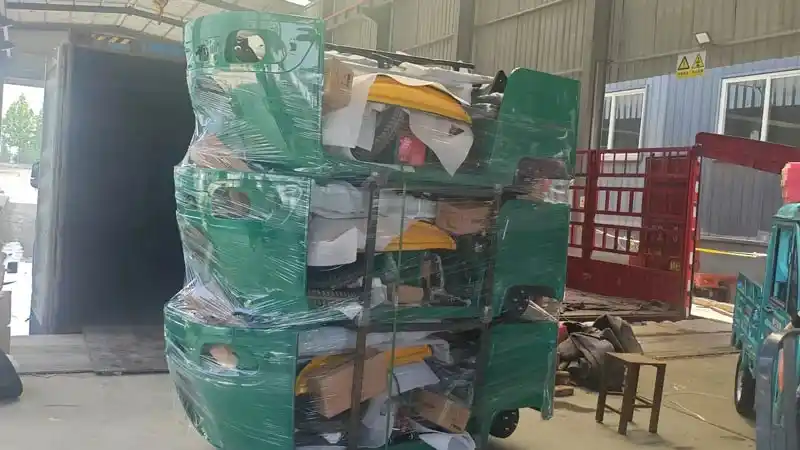

Finished CKD Packing
Standardized CKD packaging for electric tricycles, neatly sorted components ready for reinforcement.

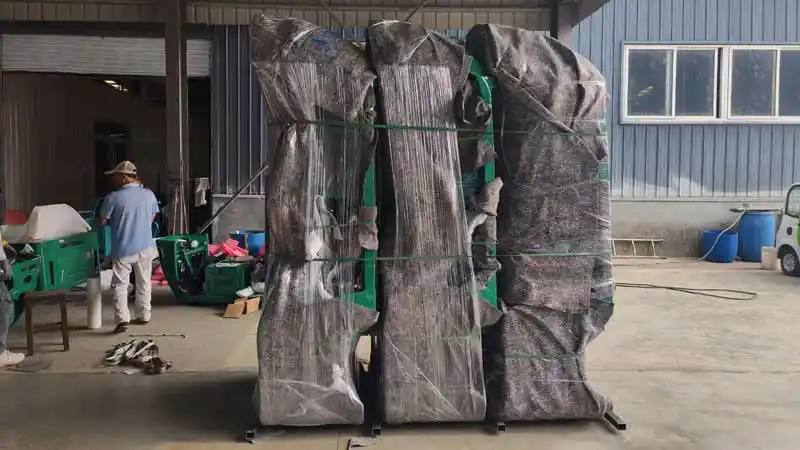

Steel Frame Anti-Collision Reinforcement
Fixed with heavy-duty steel brackets to prevent collision, deformation and damage during long sea transportation.

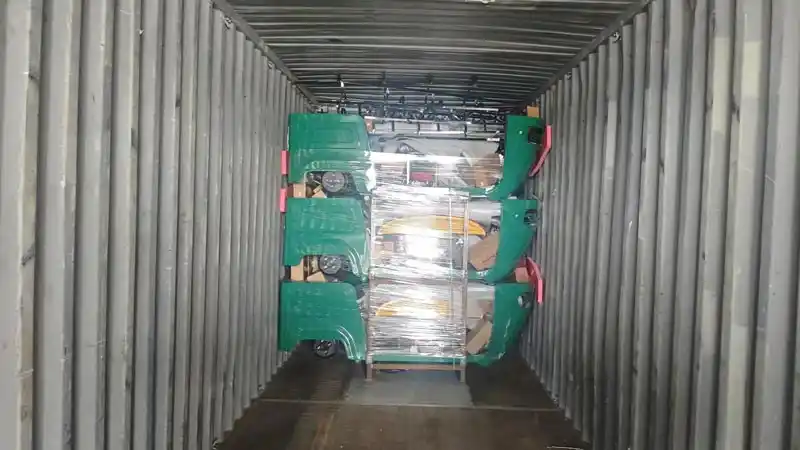

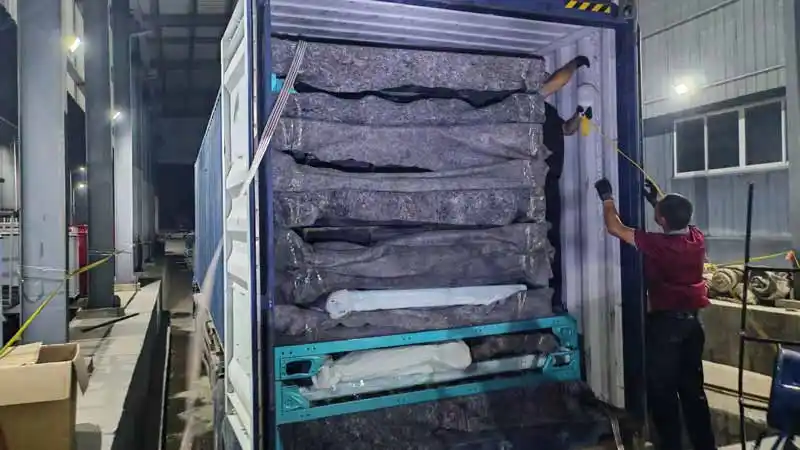

Container Loading Process
Professional loading arrangement to maximize container space and cut your ocean freight cost.
Pre-Closure Final Audit
Comprehensive last inspection before container sealing. Ensure zero mistakes before shipment.
1. Q: Can I get some samples?
Re: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
Re: No. All products are to be produced according to your order including samples.
3. Q: What’s the delivery time?
Re: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
4. Q: Can I mix different models in one container?
Re: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
Re: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
6. Q: Do you have after-sale service? What’s the after-sale service?
Re: We have oversea after-sale service file for your reference. Please consult the sales manager if needed.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
Re: Yes, we will. The core of our company culture is honesty and credit. We have become a trusted partner of dealers since its establishment.
8. Q: What is your payment?
Re: TT, LC.
9. Q: What are your shipping terms?
Re: EXW, FOB, CNF, CIF.
service
FAQ
Every procedure is under supervision. Pre-production inspection, pre-packing parts verification, and final check before container sealing. We prevent missing accessories and product defects, minimizing risks for your bulk orders.
