Electric Cargo Tricycle
Certified Factory Supply for Global Markets
EEC Standard | OEM Available | Wholesale Price

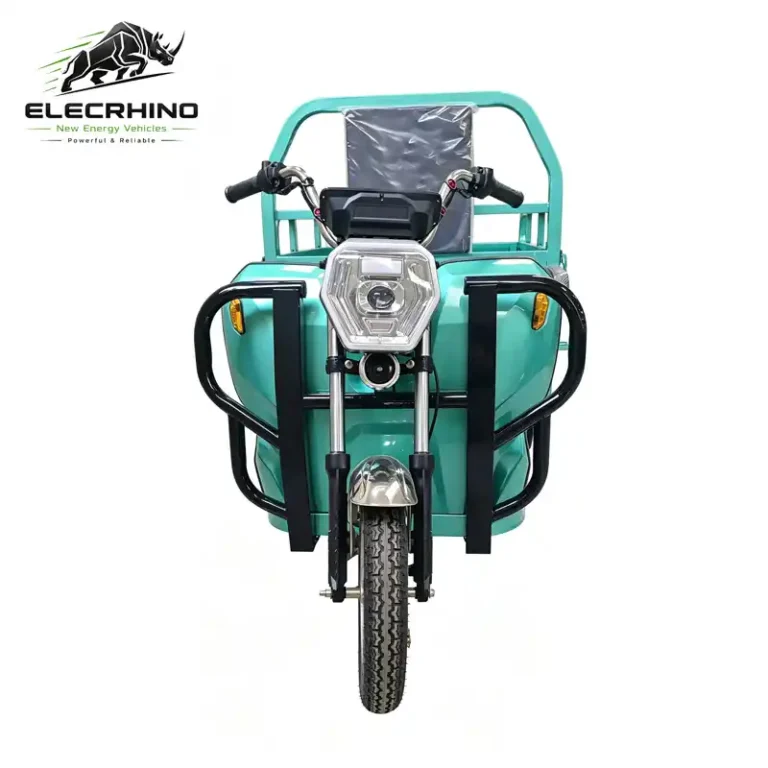

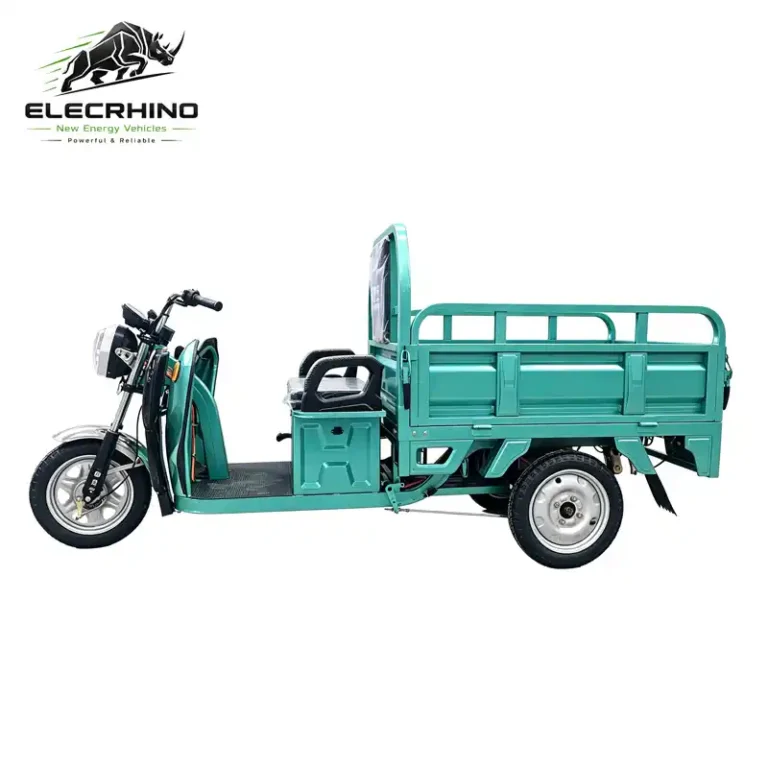

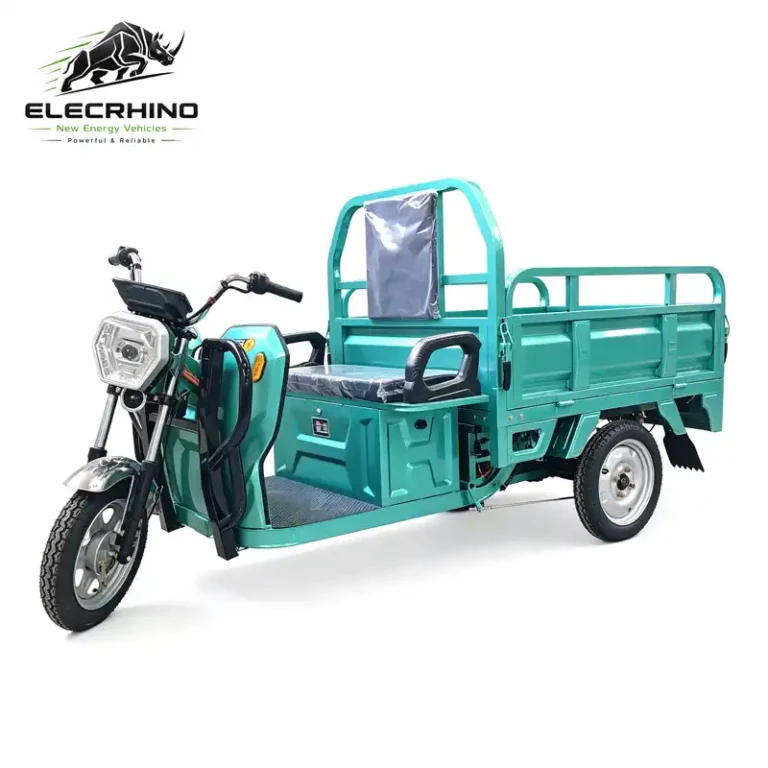

Electric Cargo Tricycle ZY3004-1.6m
| Model: | ZY3004-1.6m |
| E-Motor: | 60V 800W |
| Battery: | Lead-acid / lithium-ion |
| Max speed: | 36km/h |
| Loading Capacity: | 500kg |
| Overall Size: | 3080×1148×1350mm |
| Loading in 40HQ: | 36 SKD Units / 60 CKD Units |
| Item | Specifications |
|---|---|
| Overall Size(mm) | 3080×1148×1350mm |
| Wheel hub | Iron |
| Dashboard | LCD instrument panel |
| Motor | 60V 800W motor |
| Motor controller | 18-tube controller |
| Front shock absorber | Hydraulic shock absorber |
| Rear axle | Integrated 160 rear axle |
| Rear suspension | Reinforced steel plate spring rear shock absorption |
| Front brake | 33 Shock absorption/front brake 110 |
| Maximum speed | 36km/h |
| Rear brake | 160 brake drum |
| Tires(F/R) | F350-12/R375-12 |
| Gradeability | 5° |
| Endurance | According to the matched battery |
| Front headlights | LED |
| Battery | Lead-acid / lithium-ion |
| Ground clearance | 140mm |
| Color | Blue, Green, Silver, Red |
| Weight | 220kg |
| Load | 500kg |
| Charging time | 6-8hour |
| Optional | Optional: motor, controller, tires |
| Loading in 40HQ | 36 SKD Units / 60 CKD Units |
Highlights At a Glance
60V 800W energy-saving motor cuts daily farm & delivery electricity cost.
18-tube economical controller meets light cargo power demand fully.
Integrated 160 rear axle lowers overseas local maintenance expense.
Reinforced steel spring rear shock handles bumpy village dirt roads.
Front 110 hub + rear 160 drum brake guarantees daily cargo safety.
500kg stable load capacity fits small batch farm & retail transport.
High 36 SKD / 60 CKD loading reduces bulk import logistics cost.
Details
Final Pre-Packing Parts Inspection
Strict manual check of all supporting spare parts after quality testing. Guarantee adequate spare stock for your local sales & after-sales service.
Full Parts Verification Completed
Double confirmation that every accessory is complete. Eliminate missing-parts troubles for bulk orders.
SKD/CKD Packing & Container Loading
We support SKD (Semi Knock-Down)/CKD (Complete Knock-Down) packaging. All electric tricycle components are separately packed to maximize container space utilization. Optimized container loading reduces your sea freight cost for bulk orders.
Finished CKD Packing
Standardized CKD packaging for electric tricycles, neatly sorted components ready for reinforcement.
Steel Frame Anti-Collision Reinforcement
Fixed with heavy-duty steel brackets to prevent collision, deformation and damage during long sea transportation.
Container Loading Process
Professional loading arrangement to maximize container space and cut your ocean freight cost.
Pre-Closure Final Audit
Comprehensive last inspection before container sealing. Ensure zero mistakes before shipment.
1. Q: Can I get some samples?
Re: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
Re: No. All products are to be produced according to your order including samples.
3. Q: What’s the delivery time?
Re: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
4. Q: Can I mix different models in one container?
Re: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
Re: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
6. Q: Do you have after-sale service? What’s the after-sale service?
Re: We have oversea after-sale service file for your reference. Please consult the sales manager if needed.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
Re: Yes, we will. The core of our company culture is honesty and credit. We have become a trusted partner of dealers since its establishment.
8. Q: What is your payment?
Re: TT, LC.
9. Q: What are your shipping terms?
Re: EXW, FOB, CNF, CIF.
service
FAQ
Every procedure is under supervision. Pre-production inspection, pre-packing parts verification, and final check before container sealing. We prevent missing accessories and product defects, minimizing risks for your bulk orders.
