Our Products
Electric Cargo Tricycle
Certified Factory Supply for Global Markets
EEC Standard | OEM Available | Wholesale Price

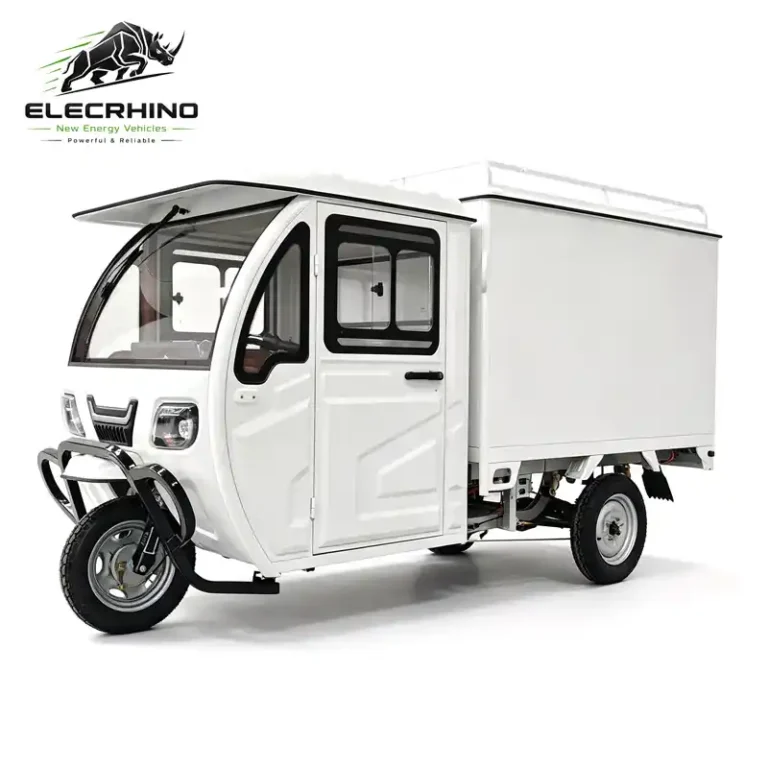

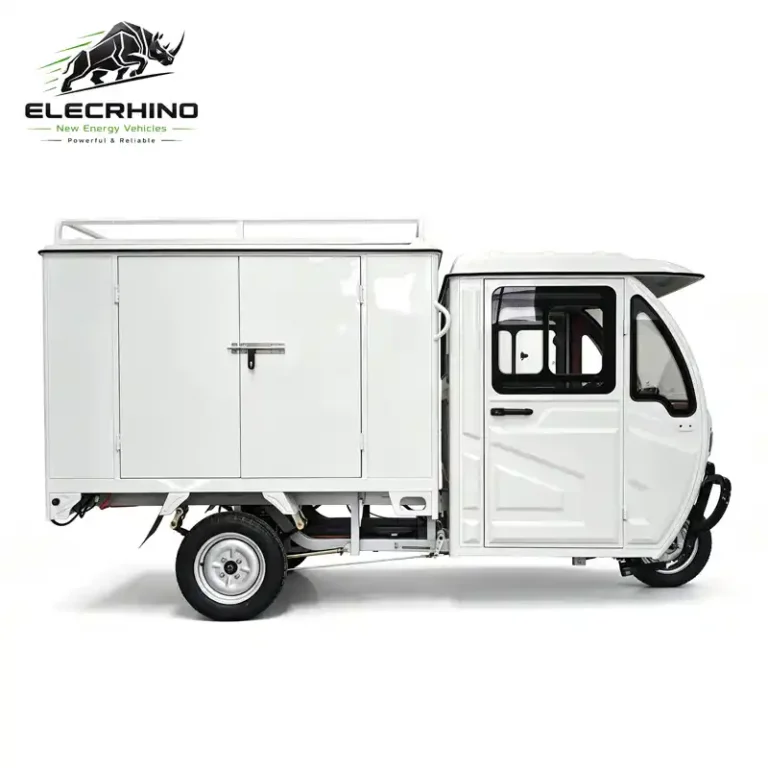

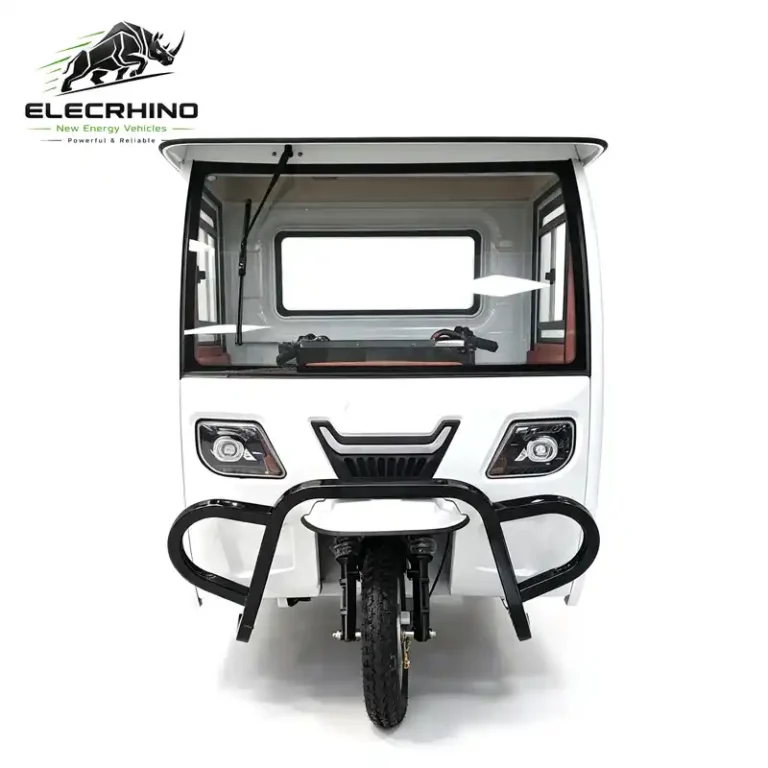

Enclosed Cabin Box Electric Delivery Vehicle ZY5101-1.8m
| Model: | ZY5101-1.8m |
| E-Motor: | 60V 1200W |
| Battery: | Lead-acid / lithium-ion |
| Max speed: | 38km/h |
| Loading Capacity: | 275kg |
| Overall Size: | 3300×1200×1700mm |
| Loading in 40HQ: | 6 SKD Units |
| Item | Specifications |
|---|---|
| Overall vehicle dimensions(mm) | 3300×1200×1700 |
| wheel hub | Iron |
| Dashboard | Integrated workstation |
| motor | 60v1200w motor |
| motor controller | 24-tube controller |
| Front shock absorber | Hydraulic shock absorber |
| rear axle | Integral rear axle |
| Rear suspension | Reinforced steel plate leaf spring |
| Front brake | 37 Shock absorption/front brake 130 |
| maximum speed | 38km/h |
| rear brake | 180 brake drum |
| Front and Rear tires | F 375-12/R 400-12 |
| Gradeability | 15° |
| Endurance | According to the matched battery |
| Front headlights | LED |
| Battery | Lead-acid / lithium-ion |
| Ground clearance | 140mm |
| Color | Blue, Green White, Red, Black, Yellow |
| weight | 366kg |
| load | 275kg |
| charging time | 6-8hour |
| Optional | Optional: motor, controller, tires, rear axle, rear door |
| Loading in 40HQ | 6 SKD Units |
Highlights At a Glance
Details
- 60V1200W self-locking two-speed PM motor balances flat road saving power & uphill parcel torque.
- Half closed driver cabin shields couriers from wind, rain and sun during long-distance delivery.
- Oversized lengthened cargo box holds more batch parcels for suburban express branch stations.
- 24-tube reinforced controller supports long-distance continuous full parcel load operation.
- Hydraulic front shock + 180 rear drum brake ensures safe suburban uphill parcel delivery.
- Max 275kg cargo load fits suburban large batch cross-village express distribution demands.

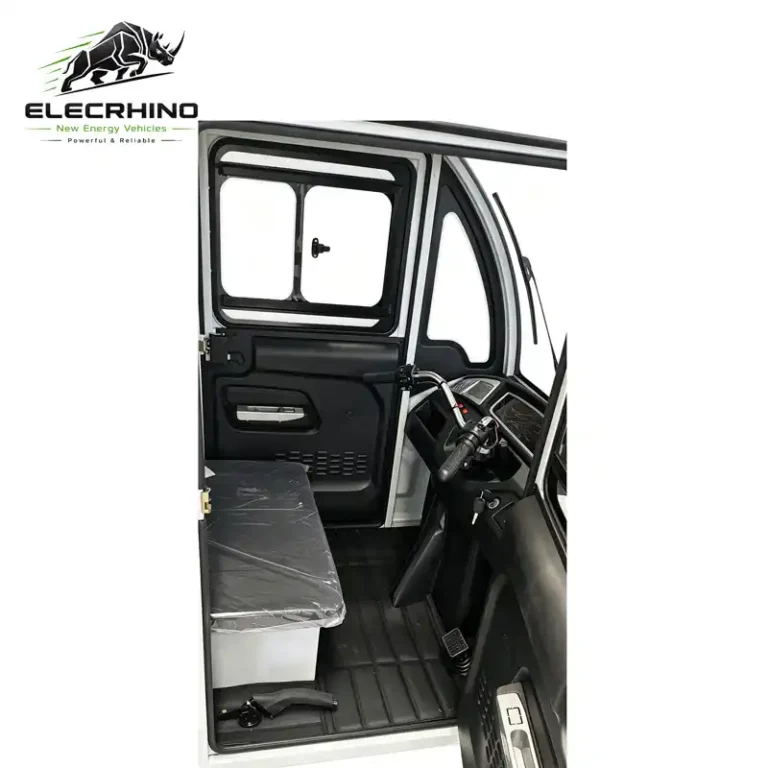

- Complete integrated workstation dashboard simplifies courier daily operation control.
Final Pre-Packing Parts Inspection
Strict manual check of all supporting spare parts after quality testing. Guarantee adequate spare stock for your local sales & after-sales service.
Full Parts Verification Completed
Double confirmation that every accessory is complete. Eliminate missing-parts troubles for bulk orders.
SKD/CKD Packing & Container Loading
We support SKD (Semi Knock-Down)/CKD (Complete Knock-Down) packaging. All electric tricycle components are separately packed to maximize container space utilization. Optimized container loading reduces your sea freight cost for bulk orders.
Finished CKD Packing
Standardized CKD packaging for electric tricycles, neatly sorted components ready for reinforcement.
Steel Frame Anti-Collision Reinforcement
Fixed with heavy-duty steel brackets to prevent collision, deformation and damage during long sea transportation.
Container Loading Process
Professional loading arrangement to maximize container space and cut your ocean freight cost.
Pre-Closure Final Audit
Comprehensive last inspection before container sealing. Ensure zero mistakes before shipment.
1. Q: Can I get some samples?
Re: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
Re: No. All products are to be produced according to your order including samples.
3. Q: What’s the delivery time?
Re: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
4. Q: Can I mix different models in one container?
Re: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
Re: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
6. Q: Do you have after-sale service? What’s the after-sale service?
Re: We have oversea after-sale service file for your reference. Please consult the sales manager if needed.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
Re: Yes, we will. The core of our company culture is honesty and credit. We have become a trusted partner of dealers since its establishment.
8. Q: What is your payment?
Re: TT, LC.
9. Q: What are your shipping terms?
Re: EXW, FOB, CNF, CIF.
service
FAQ
Every procedure is under supervision. Pre-production inspection, pre-packing parts verification, and final check before container sealing. We prevent missing accessories and product defects, minimizing risks for your bulk orders.
